MTi-630 AHRS Development Kit
When it comes to the highest standard in attitude and heading reference systems (AHRS), the MTi-630 is a cut above. Its sensors and sensor fusion algorithm deliver data on drift-free roll, pitch, and true-north-referenced yaw.
The MTi-630 is part of the MTi 600-series and allows seamless integration with your application, with native CAN support.
| Accelerometer Full-scale Range: | ±10g |
|---|---|
| Form factor: | Module (IP51) |
| Functionality: | IMU, VRU, AHRS |
| Gyroscope Full-scale Range: | ±2000°/s |
| Interface: | RS232, CAN, UART |
| Roll & Pitch Accuracy: | 0.2° RMS |
| Series: | MTi 600-series |
| Yaw/Heading Accuracy: | 1° RMS |

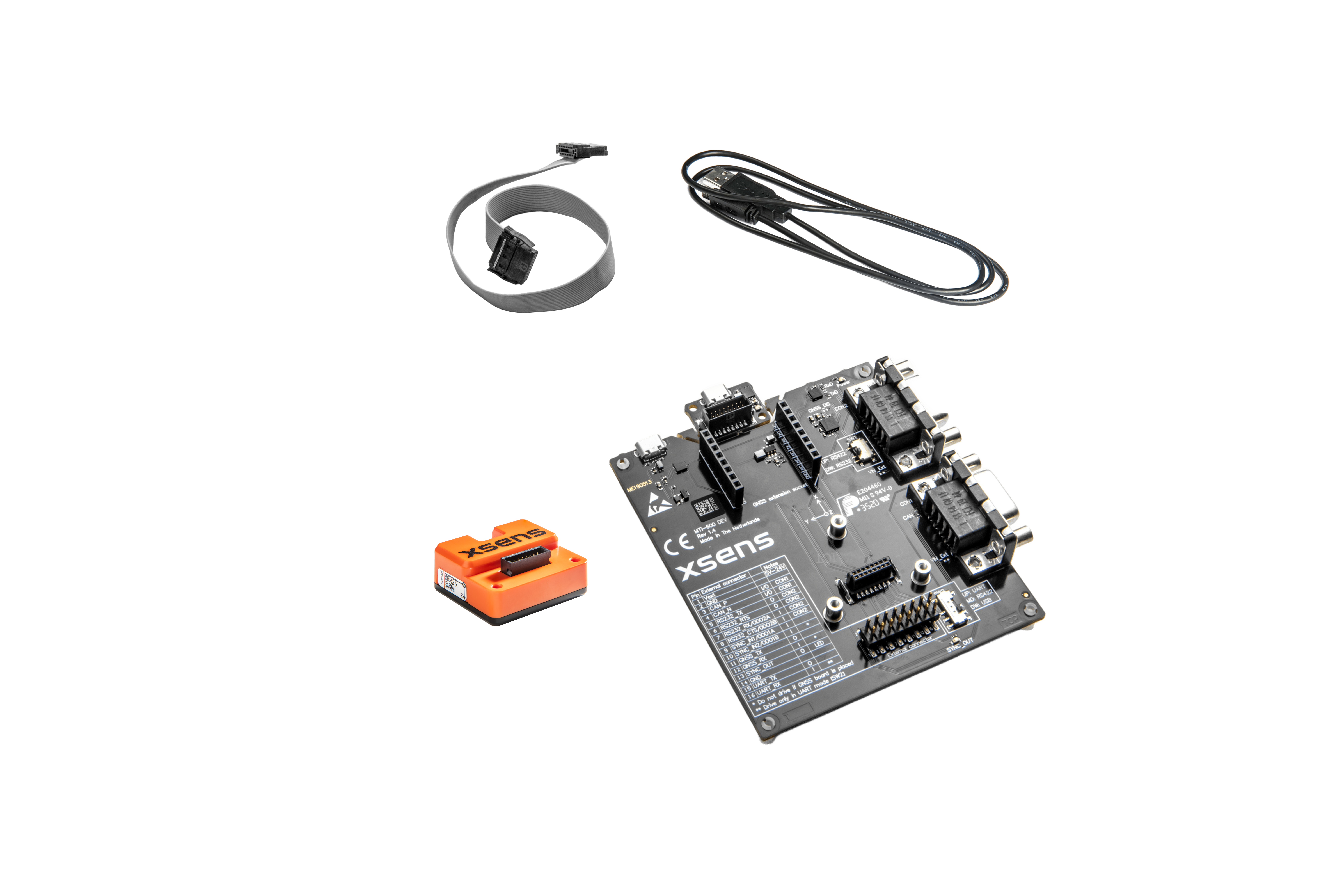

- MTi-630 MT Software Suite (free download)

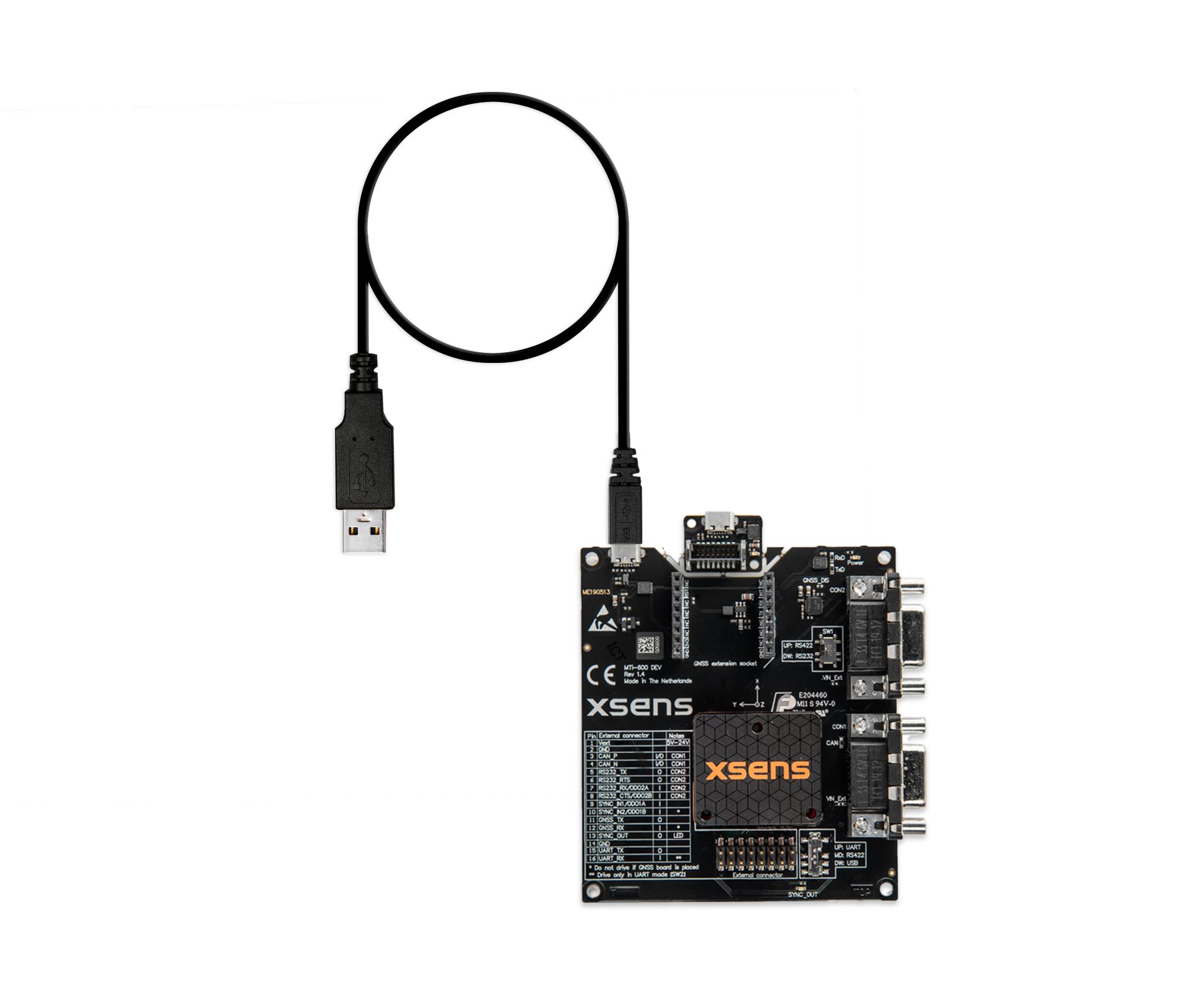

- MTi development board
- MTi UART2USB converter board
- Flat Cable (20cm.)
- Micro USB cable
